商品讯息 PRODUCT

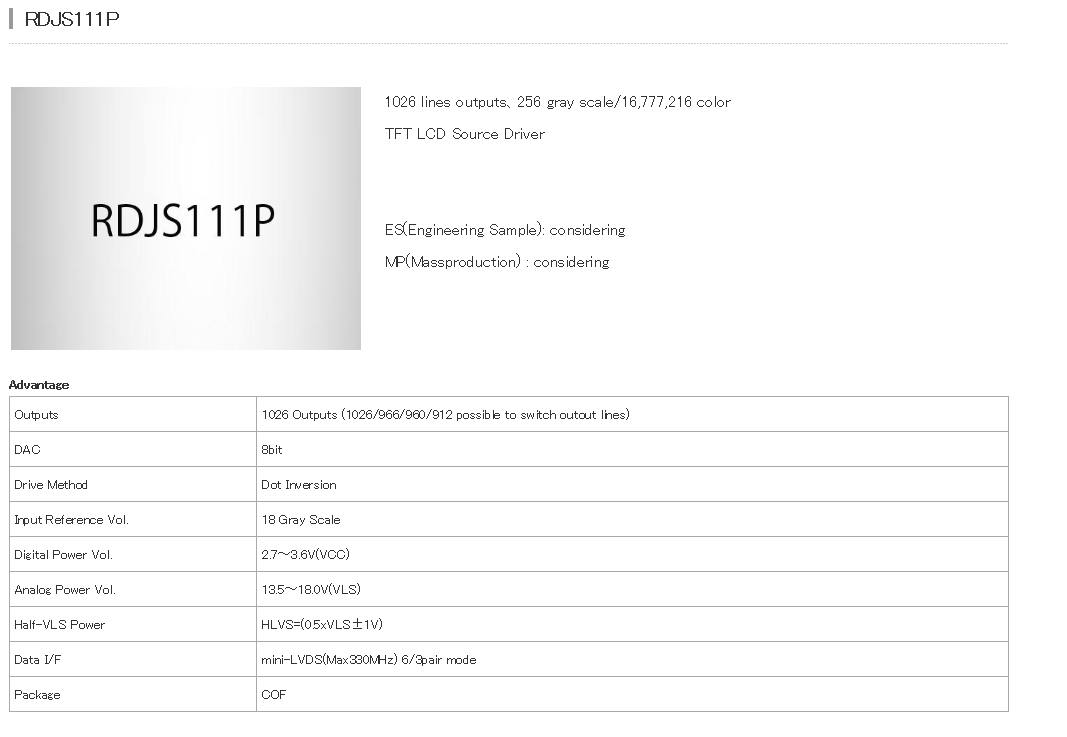

RDJS111P
1026 lines outputs、256 gray scale/16,777,216 color
TFT LCD Source Driver
ES(Engineering Sample): considering
MP(Massproduction) : considering
|
Outputs |
1026 Outputs (1026/966/960/912 possible to switch outout lines) |
|
DAC |
8bit |
|
Drive Method |
Dot Inversion |
|
Input Reference Vol. |
18 Gray Scale |
|
Digital Power Vol. |
2.7～3.6V(VCC) |
|
Analog Power Vol. |
13.5～18.0V(VLS) |
|
Half-VLS Power |
HLVS=(0.5xVLS±1V) |
|
Data I/F |
mini-LVDS(Max330MHz) 6/3pair mode |
|
Package |
COF |
