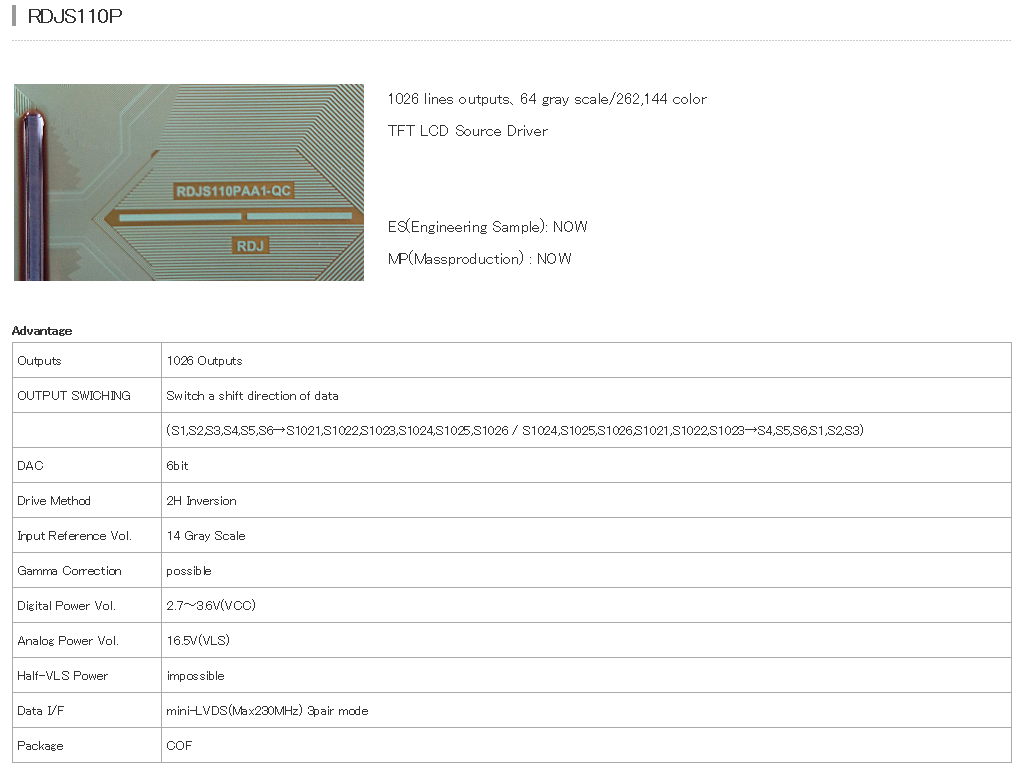

Outputs

1026 Outputs

OUTPUT SWICHING

Switch a shift direction of data

(S1,S2,S3,S4,S5,S6→S1021,S1022,S1023,S1024,S1025,S1026 / S1024,S1025,S1026,S1021,S1022,S1023→S4,S5,S6,S1,S2,S3)

DAC

6bit

Drive Method

2H Inversion

Input Reference Vol.

14 Gray Scale

Gamma Correction

possible

Digital Power Vol.

2.7～3.6V(VCC)

Analog Power Vol.

16.5V(VLS)

Half-VLS Power

impossible

Data I/F

mini-LVDS(Max230MHz) 3pair mode

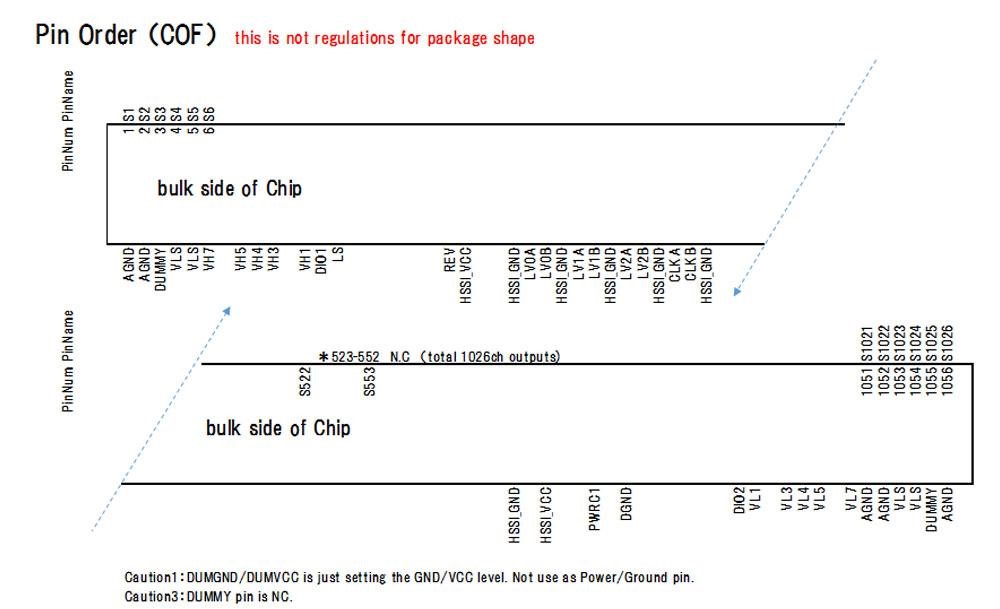

Package

COF
