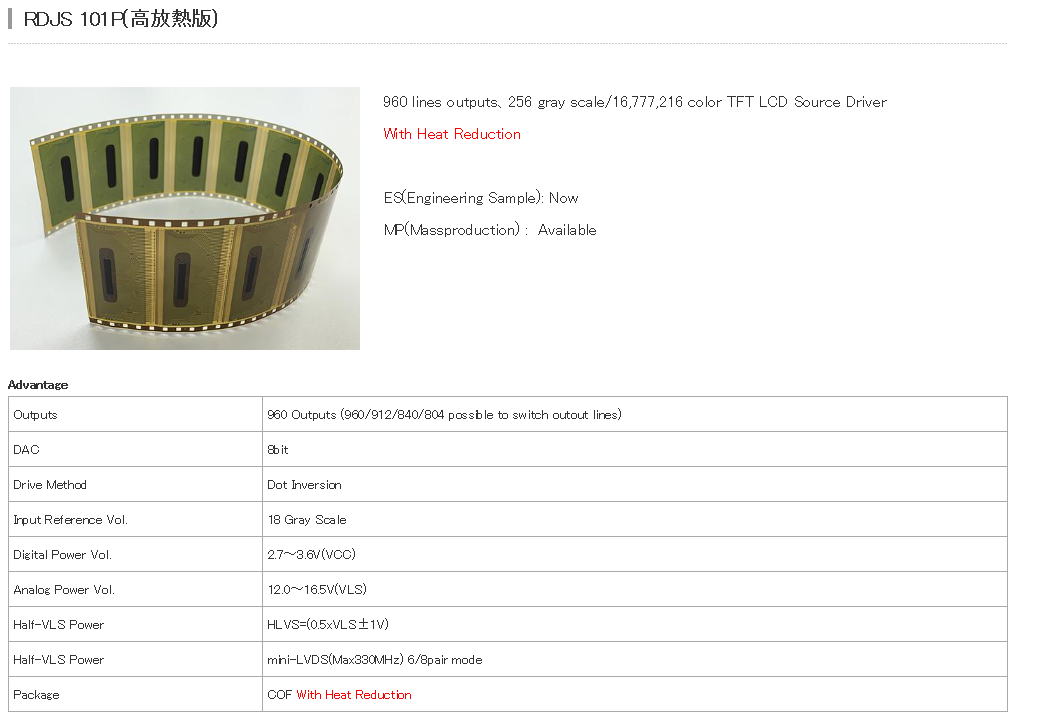

RDJS-101P(高放熱版)
960 lines outputs、256 gray scale/16,777,216 color TFT LCD Source Driver
With Heat Reduction
ES(Engineering Sample): Now
MP(Massproduction) : Available
|
Outputs |
960 Outputs (960/912/840/804 possible to switch outout lines) |
|
DAC |
8bit |
|
Drive Method |
Dot Inversion |
|
Input Reference Vol. |
18 Gray Scale |
|
Digital Power Vol. |
2.7～3.6V(VCC) |
|
Analog Power Vol. |
12.0～16.5V(VLS) |
|
Half-VLS Power |
HLVS=(0.5xVLS±1V) |
|
Half-VLS Power |
mini-LVDS(Max330MHz) 6/8pair mode |
|
Package |
COF With Heat Reduction |
